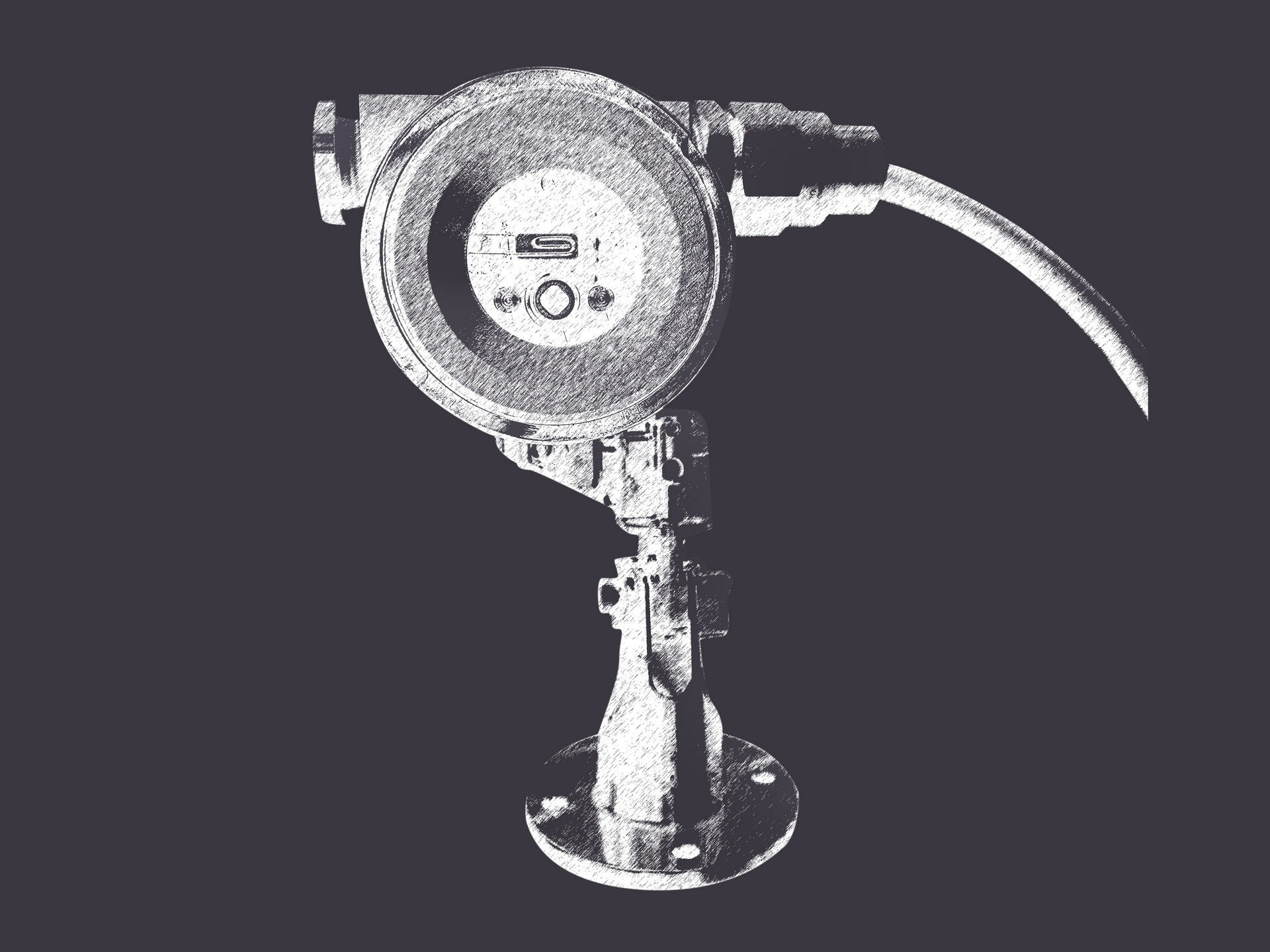

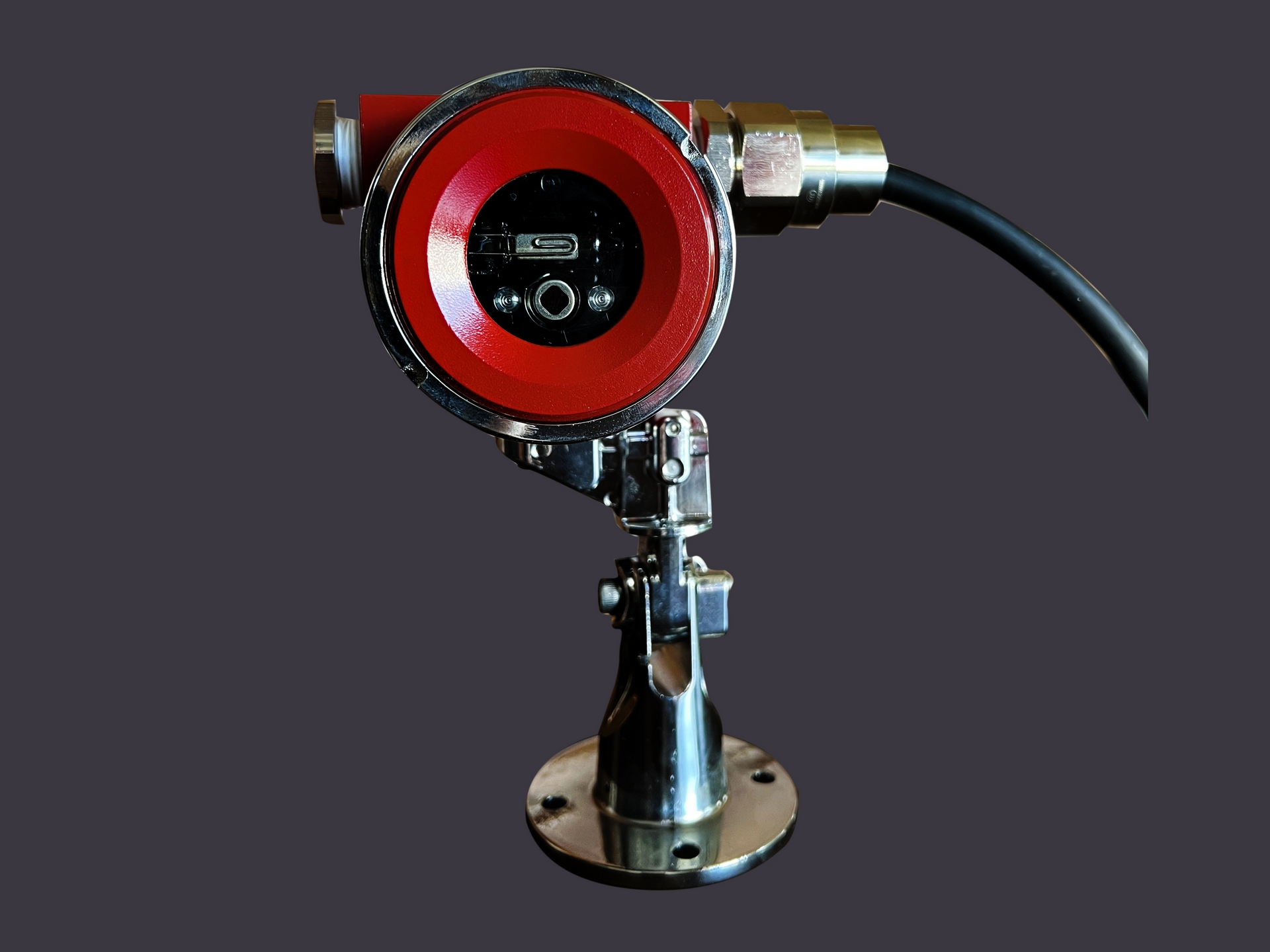

DFD-100EX(​UV+IR)

Medium detection renge (up to 30m )
Hazardous Areas

  • Infra-red, Ultra-violent sersor
  • 4-20 mA analog output
  • Adjustible sensitivity range by dip switch
  • -20 to +55 C operating temprature
  • Aluminum Die-cast ATEX approved body
  • Weather proof IP 68
  • Easy access to termination without touching sensorers alignment
  • Normal, Fault and Alarm local LED indication

DFD-100EX is cutting edge flame detector, to detect wide range of hydrocarbon flames using UV and IR sensor to reduce false alarm and give fast reliable response to real fires

Additional to 4-20 mA output, 1 Alarm and 1 fault relay outputs considered to connect to universal FACPs, F&Gs and PLCs Control Panels.

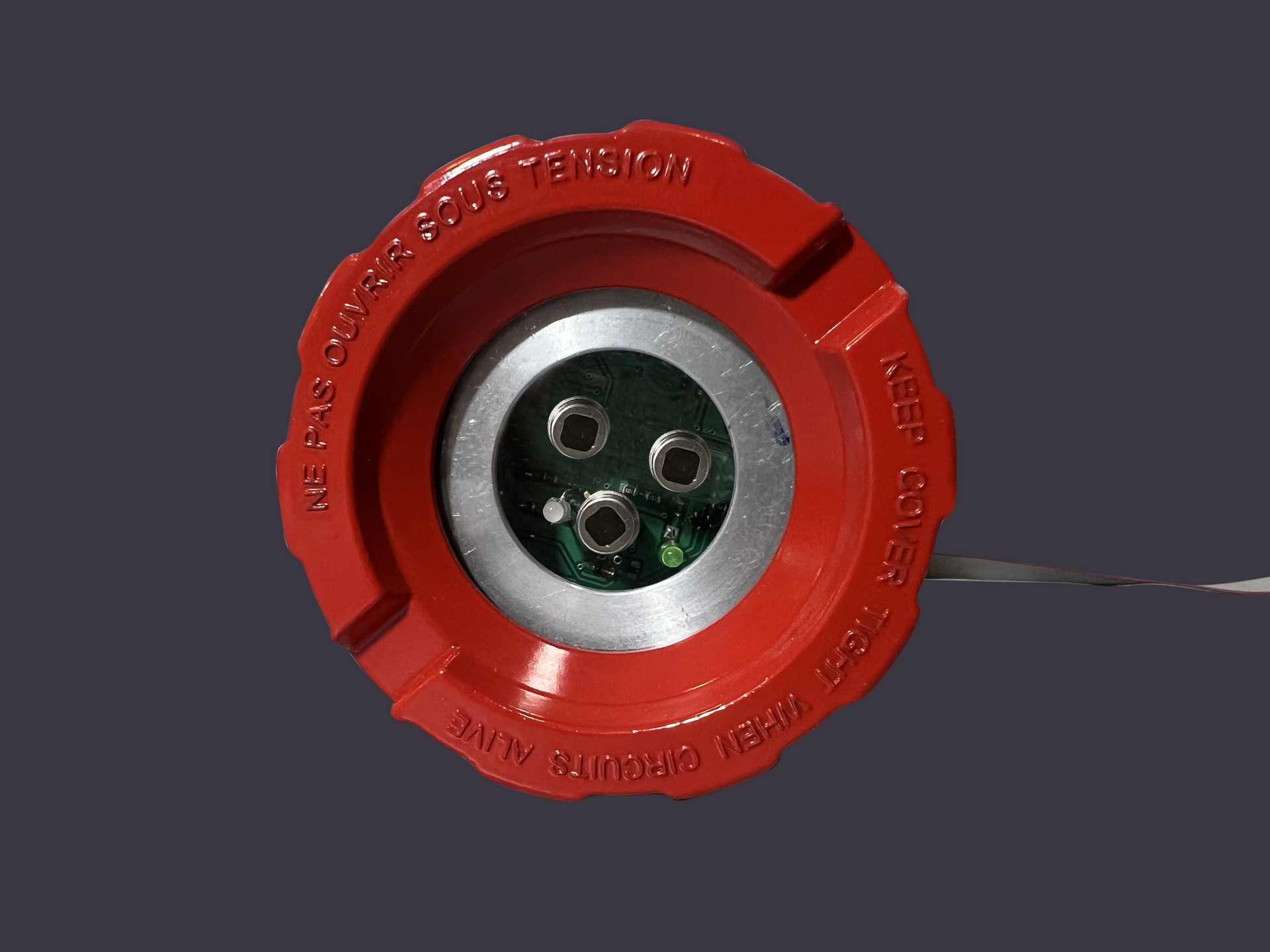

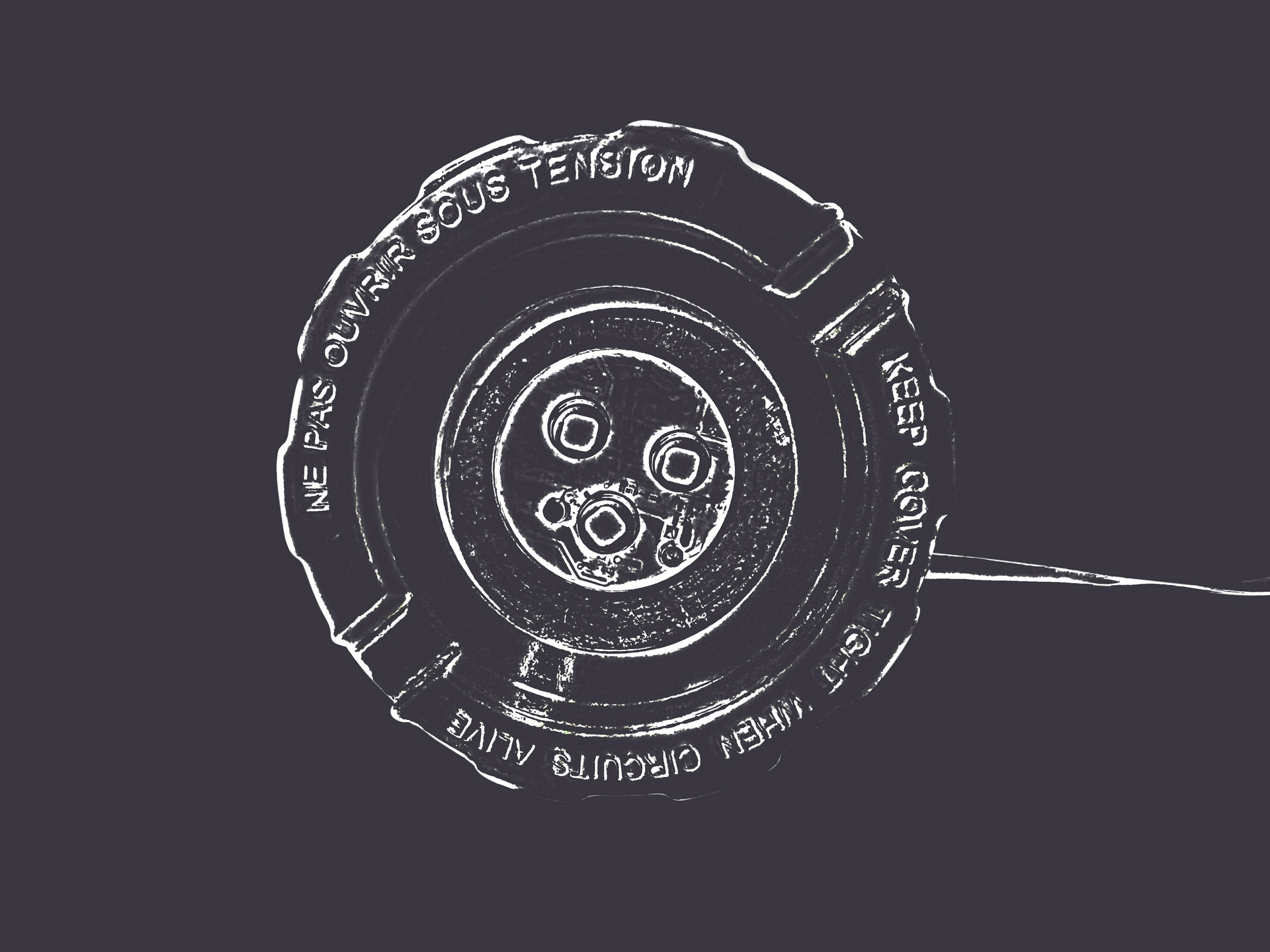

DFD-1000EX(IR3)

Longer Detection Renge(up to 60m)
Hazardous Areas

  • Triple Infra-red Spectrom sersor
  • 4-20 mA analog output
  • Adjustible sensitivity range by dip switch
  • -20 to +55 C operating temprature
  • Aluminum Die-cast ATEX approved body
  • Weather proof IP 68
  • Easy access to termination without touching sensorers alignment
  • Normal, Fault and Alarm local LED indication

D​FD-1000EX is cutting edge flame detector, to detect wide range of hydrocarbon flames using triple IR sensor to reduce false alarm and give fast reliable response to real fires

Additional to 0-20 mA output, 1 Alarm and 1 fault relay outputs considered to connect to universal FACPs, F&Gs and PLCs Control Panels.

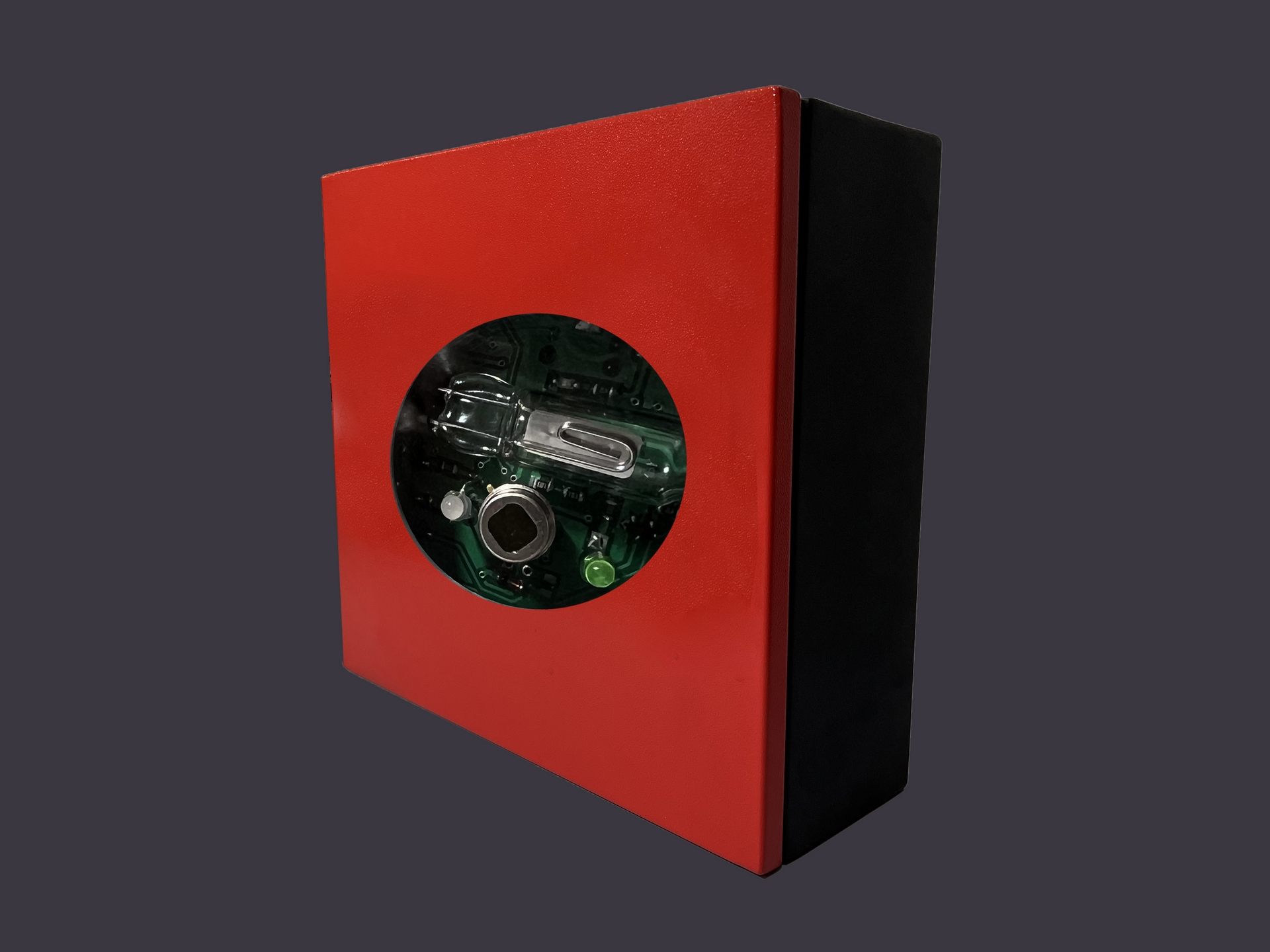

DFD-10P(UV+IR)

Medium derection Range(up to 30m)
Commercial Buildings

  • Infra-red, Ultra-violent sersor
  • 4-20 mA analog output
  • Adjustible sensitivity range by dip switch
  • -20 to +55 C operating temprature
  • Easy access to termination without touching sensorers alignment
  • Normal, Fault and Alarm local LED indication

DFD-10P is cutting edge flame detector, to detect wide range of hydrocarbon flames using UV and IR sensor to reduce false alarm and give fast reliable response to real fires.

Additional to 4-20 mA output, 1 Alarm and 1 fault relay outputs considered to connect to universal FACPs, F&Gs and PLCs Control Panels.

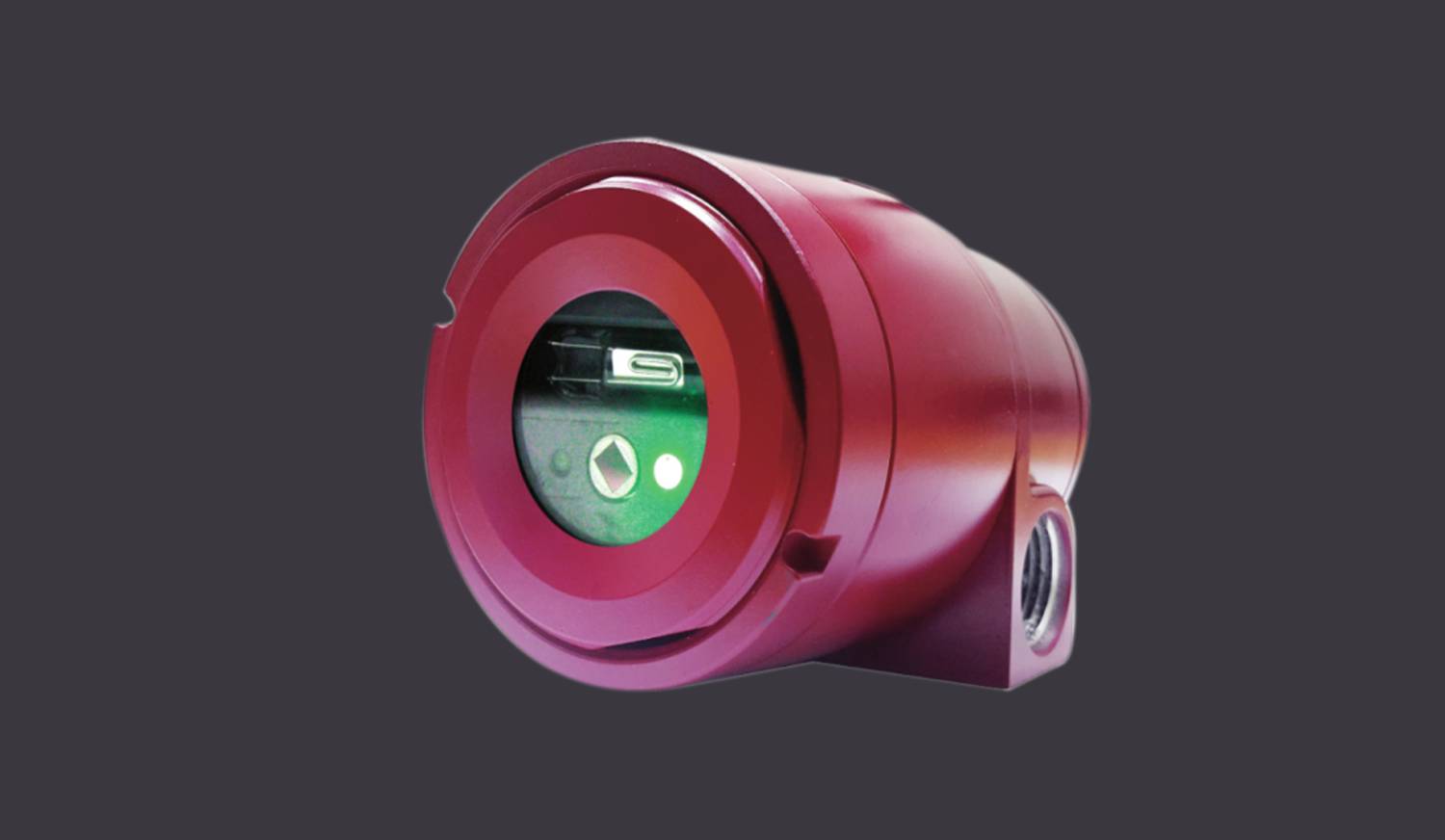

GTF-1100U

  • Sensing Element: UV/IR
  • Detection Range: 30m
  • Viewing angle: Vertical 100 °, Horizontal 100 °
  • Automatic & manual self-diagnosis function
  • Indicators - Status LED (Bi-Color: RED & GREEN), Alarm LED (RED)
  • CE Marked
  • ATEX Certified
  • FM Certified

interface:
- Relay contact output (fire &breakdown)
- RS-485 communication
- 0 ~ 20mA output

    Dataseet     Instalation and Operation     IECEx Certificate     FM Certificate

GTF-1100T

  • Sensing Element: IR3
  • Detection Range: 30m
  • Viewing angle: Vertical 100 °, Horizontal 100 °
  • Automatic & manual self-diagnosis function
  • Indicators - Status LED (Bi-Color: RED & GREEN), Alarm LED (RED)
  • CE Marked
  • ATEX Certified
  • FM Certified

interface:
- Relay contact output (fire &breakdown)
- RS-485 communication
- 0 ~ 20mA output

    Dataseet     Instalation and Operation     IECEx Certificate     FM Certificate

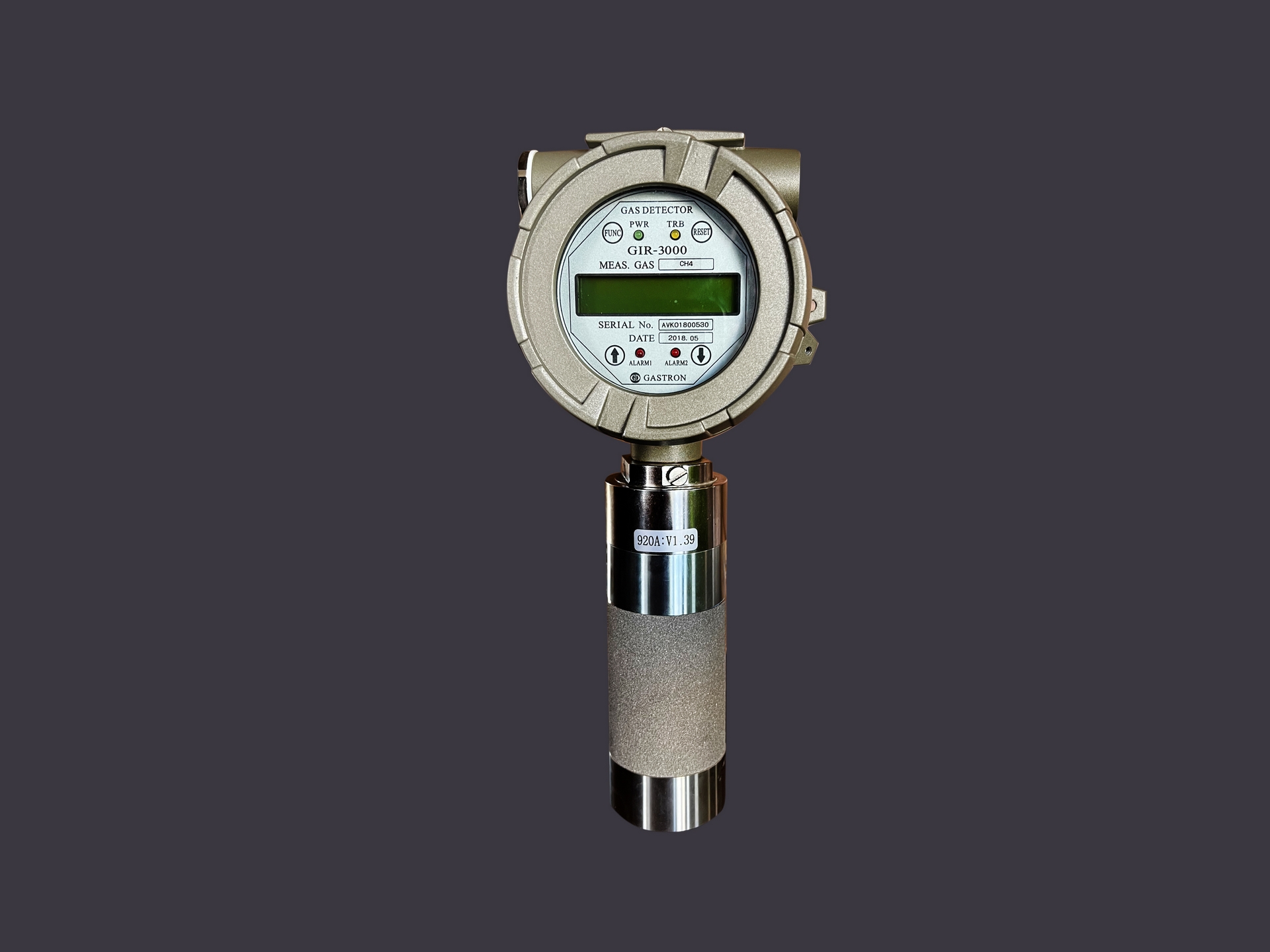

GIR-3000

  • Continuous detection of flammable, CO2, CO and N2O gases in explosion hazardous area with flame proof structure
  • State-of-the art infrared detection principle
  • Long service life time(more than 5 years)
  • Operation in non oxygen environment
  • Self diagnosis function with built-in Microprocessor
  • Fast response time(<5 sec)
  • Built-in back light LCD or OLED display
  • Auto calibration and program setting with a magnet bar
  • 2-stage alarm, 1-trouble display and relay contact output
  • 4-20mA (Current source or Sink) output signal
  • Calibration and maintenance by one-man
  • SIL2 Certified
  • MED/ABS/DNV/CE/HART/ATEX
  • Easy configuration of monitoring system by RS-485 Modbus or HART communication
  • With the alarm unit, GTL-100 - Normal : Green LED - Alarm : Red LED, Buzzer(95dB) - Trouble : Yellow LED
    Dataseet     Instalation and Operation      Certificate     Gas List

GTD-2000EX

  • Continuous detection of flammable gases in explosion hazardous area with flame proof structure
    Self diagnosis function with built-in Microprocessor
  • Detection gas from low to high concentration owing to various detection principle
  • Stable quality and proved detection principle for service life
  • Built-in back light LCD or OLED display
  • Easy Configuration of monitoring by HART communication
  • Auto calibration and program setting with a magnet bar
    4-20mA (Current source or Sink) output signal
  • SIL2 Certified
  • ATEX Certified
  • CE Marked
  • HART Approved
  • DNV/ABS/MED
  • With the alarm unit - Normal : Green LED - Alarm : Red LED, Buzzer(95 dB) - Trouble : Yellow LED
    Calibration and maintenance by one-man
    Dataseet     Instalation and Operation      Certificate     Gas List

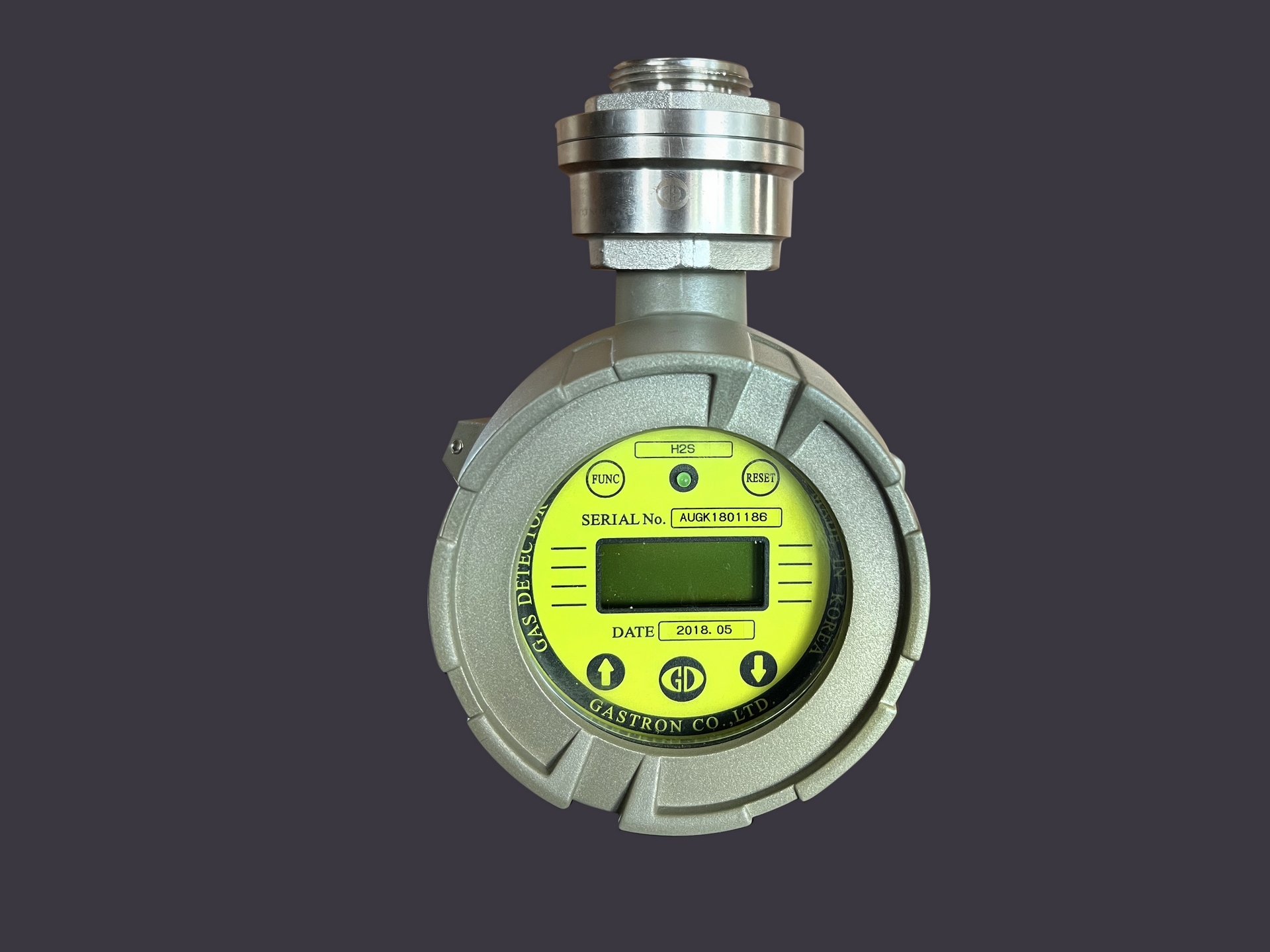

GTD-2000TX

  • Continuous detection of toxic gases and oxygen in explosion hazardous area with flame proof structure
  • Self diagnosis function with built-in Microprocessor
  • Excellent selectivity by adapting detection principle only for toxic gases & oxygen
  • Superior performance for detecting toxic gases below TLV
  • Multi functions and high quality with low cost of ownership
  • Built-in back light LCD or OLED display
  • Easy configuration of monitoring system by HART communication
  • Auto calibration and program setting with a magnet bar
    4-20mA (Current source or Sink) output signal
  • SIL2 Certified
  • ATEX Certified
  • CE Marked
  • HART Approved
  • DNV/ABS/MED
  • With the alarm unit - Normal - Green LED - Alarm - Red LED, Buzzer(95 dB) - Trouble - Yellow LED
    Calibration and maintenance by one-man
    Dataseet     Instalation and Operation      Certificate     Gas List
